Overview
Two Lenses. Zero Blind Spots. 100% Wire-Free.

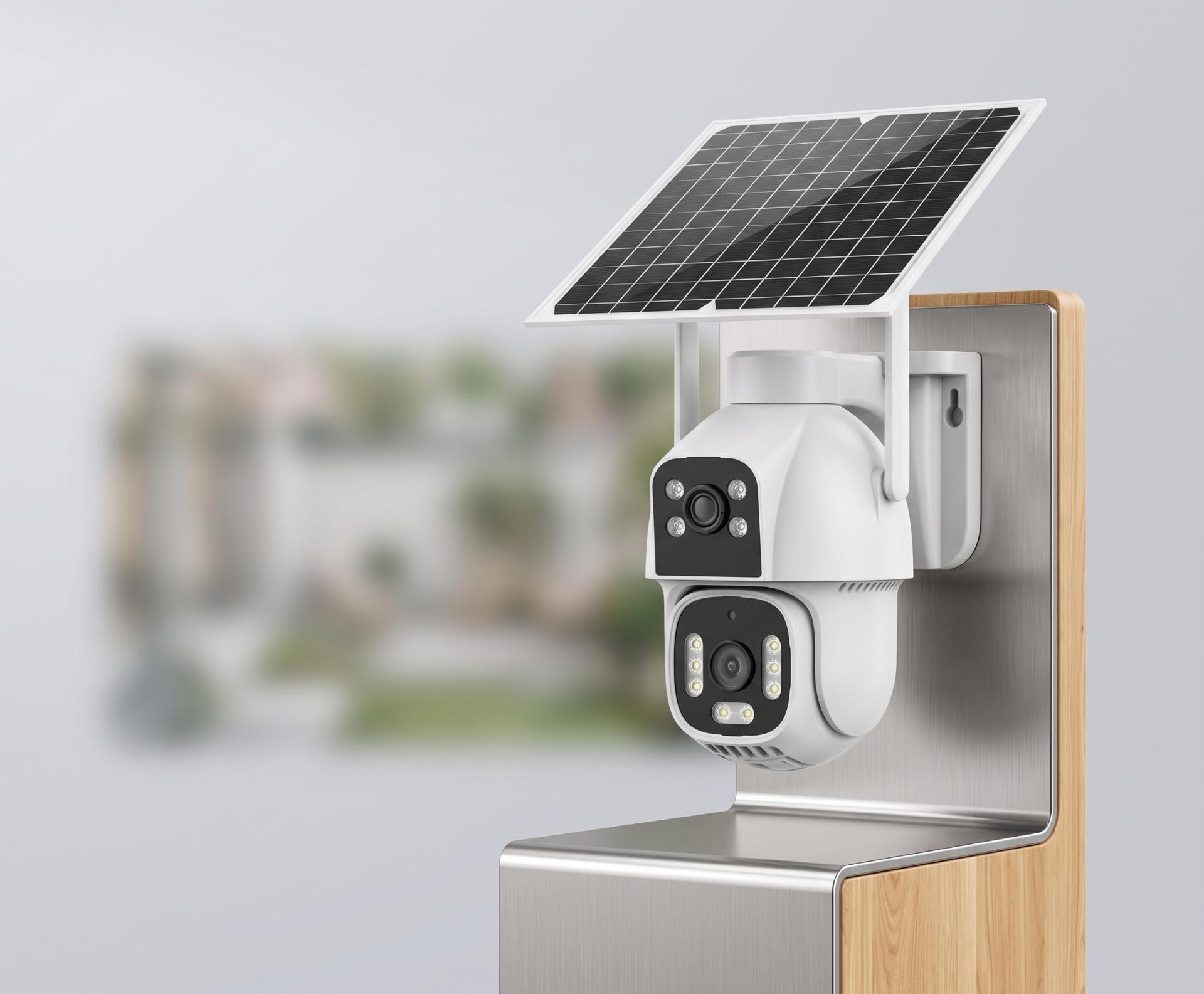

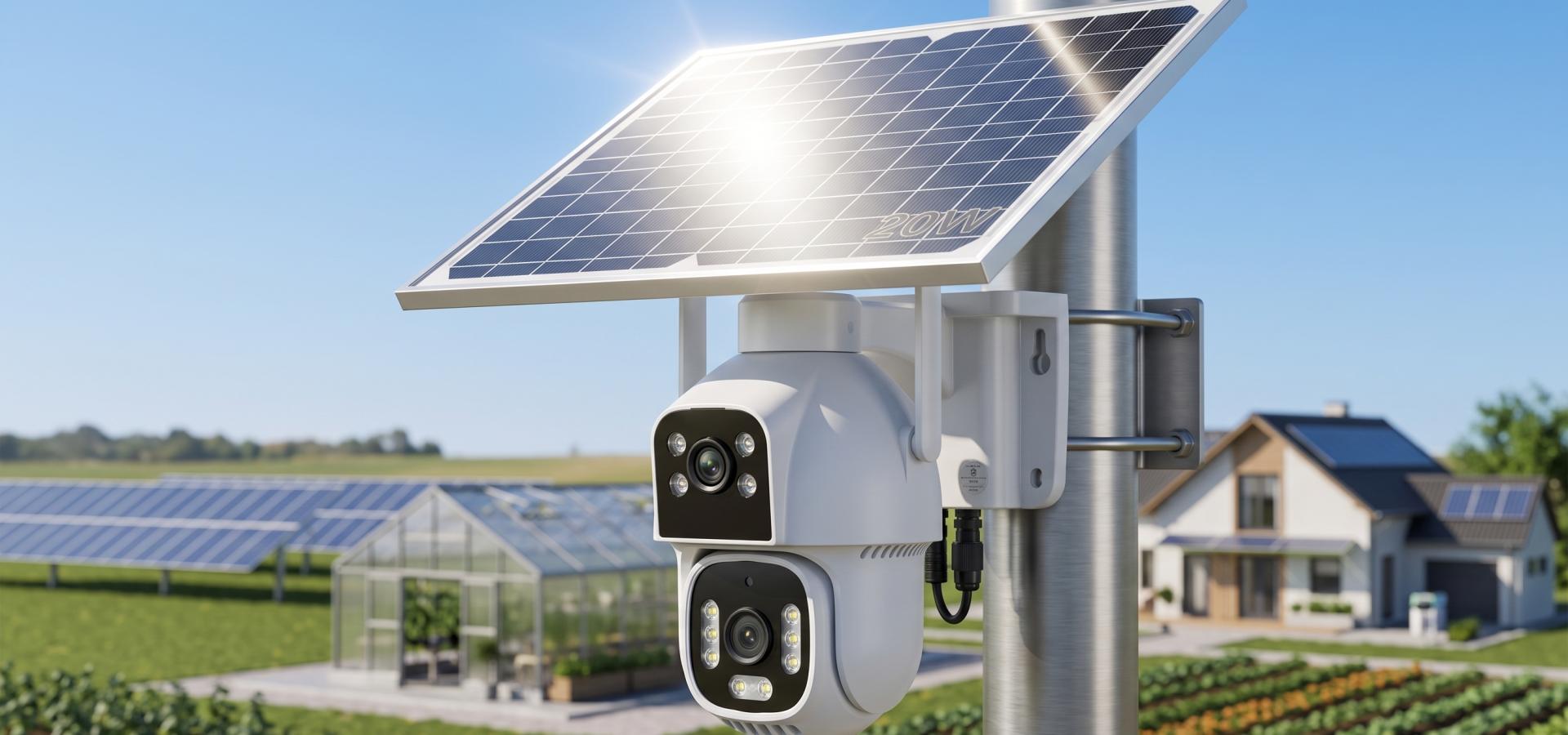

KEYPLUS 4G Dual-Lens Solar PTZ Security Camera (VC-SQ203DW)
The KEYPLUS VC-SQ203DW is an advanced 100% wire-free 4G solar security camera engineered for remote monitoring. Equipped with a high-efficiency 20W solar panel and a massive 12000mAh built-in battery, it delivers continuous power completely off the grid. Its innovative dual-lens design (3.6mm bullet + 3.6mm dome) paired with 350° PTZ capabilities ensures absolute zero blind spots. Featuring smart AI humanoid tracking and intelligent full-color night vision, it serves as the ultimate security solution for construction sites, farms, utility properties, and remote facilities.
Pain Points & Challenge
No Power? No Wi-Fi? No Problem. Protecting remote assets shouldn't be limited by infrastructure.
- The Off-Grid Challenge: Construction sites, farms, and remote warehouses often lack wired power outlets and stable Wi-Fi, leaving valuable assets vulnerable to theft and vandalism.
- The Single-Lens Flaw: Traditional PTZ cameras only focus in one direction at a time. Tracking a subject on one side leaves other perimeter zones completely unmonitored.
- Battery Anxiety: Standard battery-powered cameras drain rapidly in active zones, necessitating frequent, troublesome manual dismounting and recharging.
Key Capabilities & Benefits
Unstoppable Off-Grid Power (4G & Solar)
- Feature: Built-in 4G LTE cellular connectivity paired with a high-output 20W solar panel and a massive 12000mAh integrated rechargeable battery.
- Advantage: Completely cuts the cord. The heavy-duty 20W panel continuously recharges the 12000mAh reservoir during daylight, keeping the unit running through extended cloudy periods without external electricity.
- Benefit: Deploy anywhere with cellular coverage. Eliminate expensive trenching, cable running, and electrician labor while enjoying uninterrupted 24/7 autonomous surveillance.
Dual-Lens Synchronized Vision
- Feature: Integrated dual-lens architecture combining a fixed 3.6mm bullet lens with an agile 3.6mm PTZ dome lens (350° pan, 0°-90° tilt).
- Advantage: The stationary bullet lens maintains an uninterrupted wide-angle overview, while the motorized PTZ dome lens rotates smoothly to track specific target movements simultaneously.
- Benefit: Complete situational awareness without blind spots. Experience the combined power and field of view of two individual cameras in a single, cost-effective deployment.
AI Humanoid Tracking & Intelligent Night Vision
- Feature: Advanced edge AI humanoid recognition paired with Intelligent Dual-Light full-color night vision.
- Advantage: Intelligently distinguishes human figures from swaying foliage, heavy rain, or passing wildlife. Upon detection, the PTZ module automatically locks on, tracks the target, and activates high-visibility white light LEDs.
- Benefit: Deter intruders proactively before an incident occurs and record vivid, full-color forensic evidence even in pitch-black conditions.
Technical Specifications
| Model | VC-SQ203DW |
| Network Connectivity | 4G LTE Cellular Network |
| Power System | 20W High-Efficiency Solar Panel + Built-in 12000mAh Battery |
| Lens Configuration | Dual-Lens System: 3.6mm Bullet Lens + 3.6mm PTZ Dome Lens |
| PTZ Control | Pan: 350° Horizontal / Tilt: 0°–90° Vertical |
| Night Vision | Intelligent Dual-Light, Full-Color Night Vision (IR & White Light) |
| Smart AI Analytics | AI Humanoid Auto-Tracking |
| Audio Intercom | Two-Way Voice Intercom (Built-in Microphone & Speaker) |
| Local Storage | Micro SD Card Slot (Supports up to 256GB) |
| Installation & Deployment | 100% Wire-Free, Wall / Pole Mountable |
