Overview
Long-Range Access Control. Centralized Hospitality Intelligence.

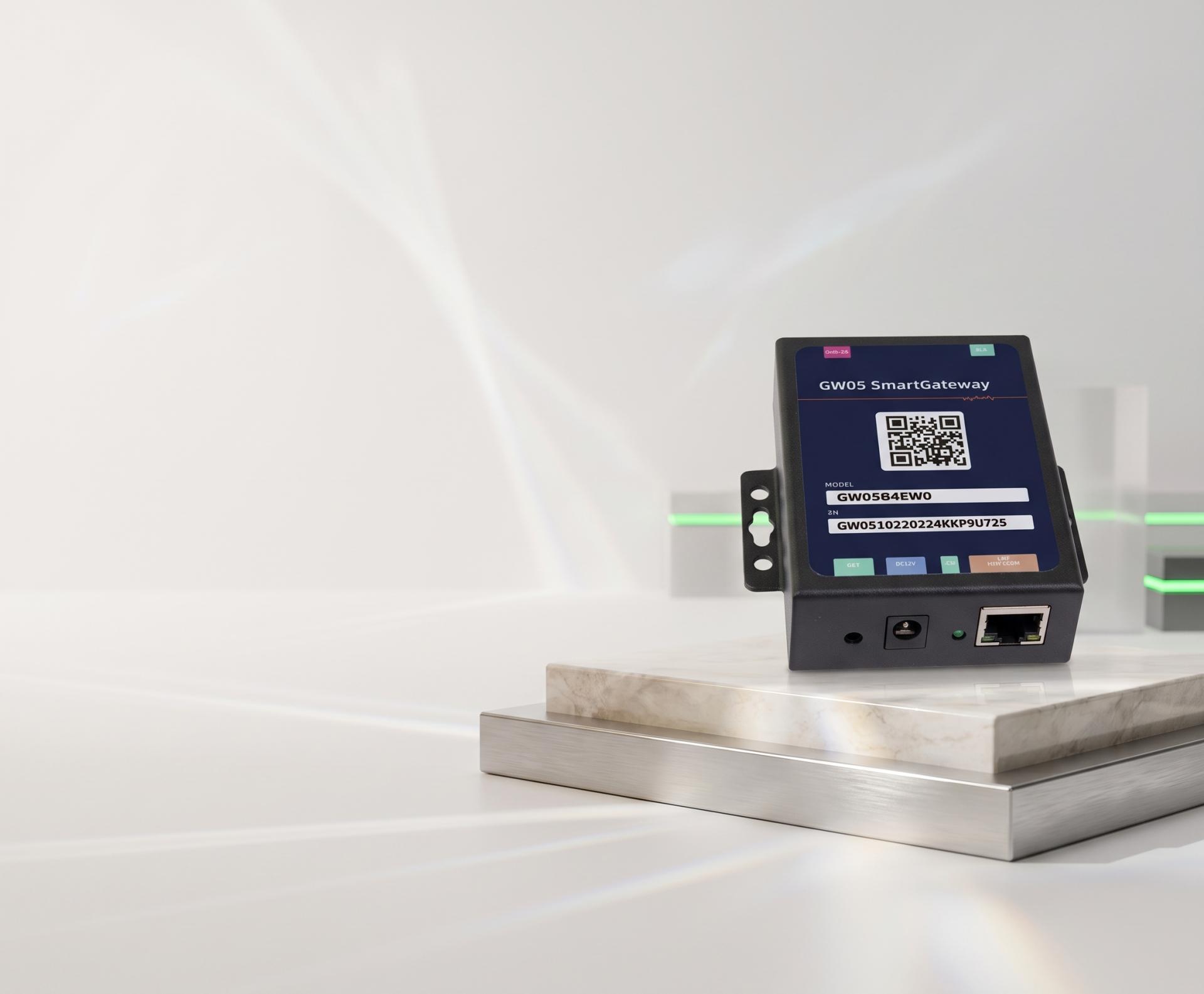

KEYPLUS GW05 BLE & 433MHz Dualband Smart Gateway
The KEYPLUS GW05 is a robust BLE and 433MHz dualband smart gateway purpose-built for enterprise LAN hotel lock systems, campus dormitories, and commercial access networks. Equipped with 100 Mbps RJ45 Ethernet and 2.4GHz Wi-Fi dual uplinks, it establishes continuous communication between front-desk management servers and door locks, enabling over-the-air biometric credential issuance, real-time battery status tracking, and instant audit trail synchronization.
Core Capabilities & Benefits
433MHz Long-Range Coverage & Density
- Feature: Dedicated high-gain 433MHz sub-1GHz external antenna with extended indoor penetrating capability.
- Advantage: Delivers significantly wider transmission range across walls and corridors compared to short-range 2.4GHz signals, linking dozens of locks per gateway.
- Benefit: Minimizes required hardware nodes and drops total procurement and wiring infrastructure budgets across multi-floor projects.
Over-the-Air Biometric Authority Issuance
- Feature: Real-time remote transmission of encrypted facial recognition templates, fingerprint records, and PIN authorizations directly from the front desk.
- Advantage: Eliminates physical keycard encoder queuing and manual on-door lock enrollment processes entirely.
- Benefit: Elevates operational efficiency and guest satisfaction, allowing instant seamless check-in directly to the assigned room.
Comprehensive BLE & Hybrid Lock Support
- Feature: Concurrent Bluetooth Low Energy (BLE) engine operating alongside the 433MHz radio.
- Advantage: Directly interfaces with BLE-only smart locks, wall access controllers, and 433MHz long-range door units within the same local network.
- Benefit: Gives integrators flexibility to deploy mixed lock tiers tailored to budget and security zones across one unified management platform.
Dual Network Uplink & Flexible Power (PoE / DC)
- Feature: 10/100 Mbps RJ45 Ethernet port alongside 2.4GHz Wi-Fi uplink, powered by DC 12V with optional PoE adapter support.
- Advantage: Ensures uninterruptible, low-latency communication to local LAN servers while offering Wi-Fi flexibility where Ethernet drops are unavailable.
- Benefit: Reduces downtime risks, enables real-time lock battery telemetry, and allows tidy single-cable network drops using standard PoE switches.
System Architecture
Seamless topology linking front-desk PMS management software to on-door smart locks, access readers, and biometric terminals via wired Ethernet and sub-1GHz/BLE wireless bands.
Technical Specifications
| Model Name | GW05 SmartGateway |
| System Application | LAN Hotel Lock System / Commercial Access Control Uplink |
| Wireless Frequencies | 433MHz (Sub-1GHz) & 2.4GHz (BLE 4.2 / Wi-Fi) |
| Network Uplink Interfaces | 1× RJ45 Port (10/100 Mbps Ethernet) + 2.4GHz Wi-Fi (802.11 b/g/n) |
| Antenna Configuration | 1× 2.4GHz Rod Antenna + 1× Extended Cable Sub-1GHz (433MHz) Antenna |
| Power Supply | Standard: DC 12V Power Adapter / Optional: 48V-to-12V PoE Converter |
| Deployment Method | Local LAN Server / On-Premise Hotel PMS Integration |
| Supported Peripherals | Facial Recognition Locks, Fingerprint Locks, BLE Smart Locks, Access Readers |
| Edge & Management Functions | Over-the-Air Authority Issuance, Real-Time Power Monitoring, Offline Authorization |

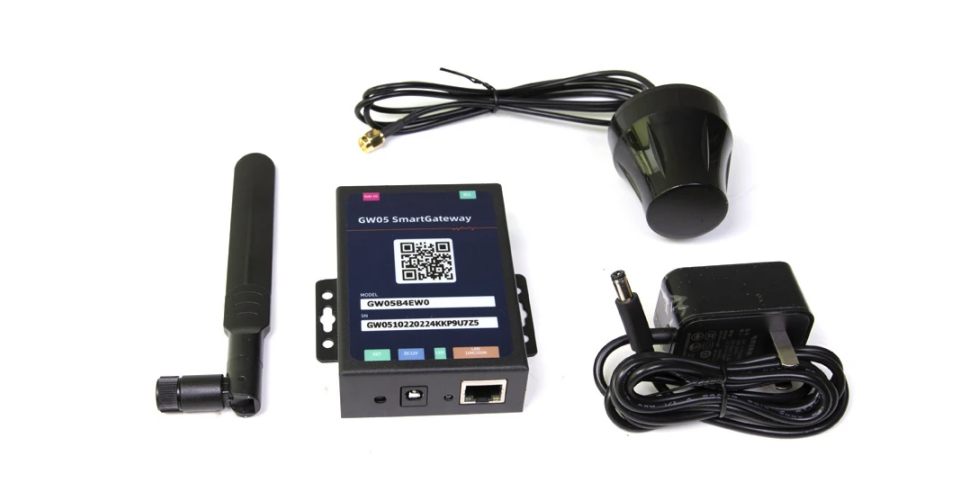

Package Contents
- 1× KEYPLUS GW05 Dualband Gateway Main Unit
- 1× 2.4GHz Omni-Directional Antenna (Wi-Fi & BLE)
- 1× High-Gain 433MHz Sub-1GHz Antenna with Extension Cable
- 1× AC-to-DC 12V Power Adapter (US/EU/UK/AU options available upon request)
