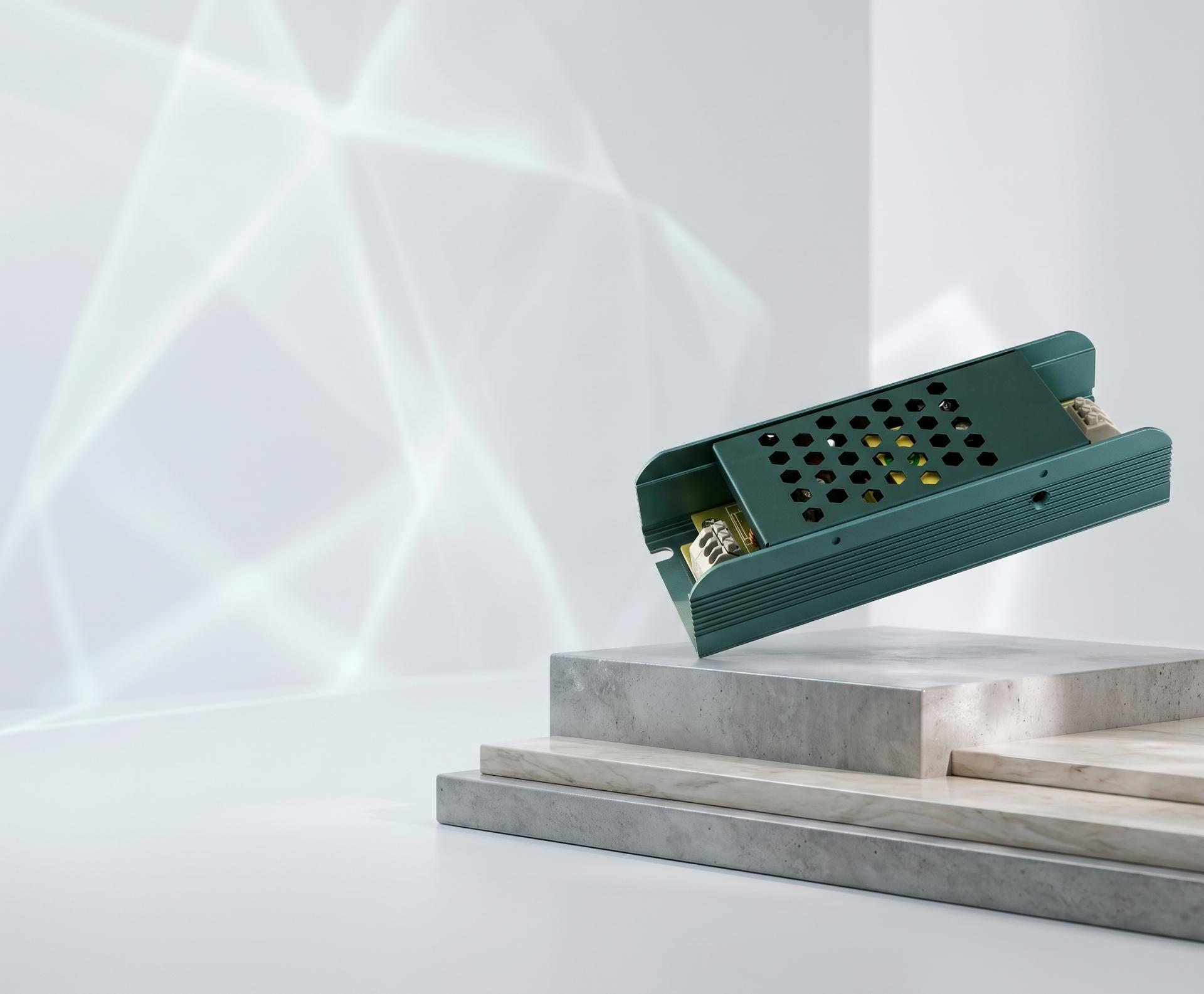

Smart DMD2D2 Dimming Controller (20W)

Short Description: The KEYPLUS Smart DMD2D2 Controller is a 20W dual-color temperature dimming driver engineered for architectural lighting. Delivering 1/1000 ultra-smooth stepless dimming, soft-start eye protection, and full electrical safety cutoff, it seamlessly integrates with modern IoT spaces.

System Fields & Ecosystem Integration:

• Device Type: Lighting Controller
• Control Function: Lighting, Scene
• Application Room Type: Hotel Room, Apartment, Office, Meeting Room, Healthcare Room
• Communication Protocol: Zigbee 3.0, BLE (Bluetooth Low Energy & Mesh)

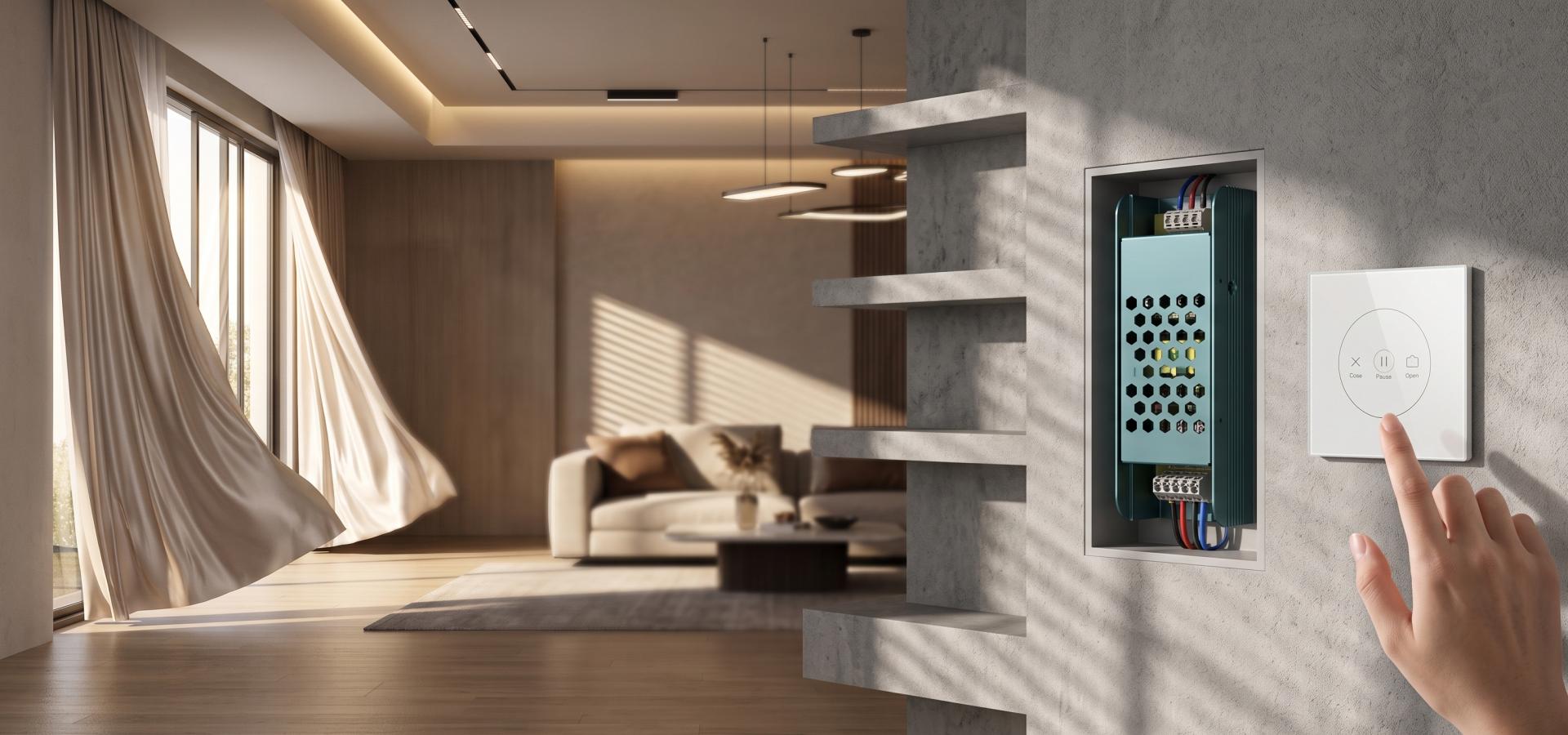

• Installation Type: Embedded (Ceiling cavity / junction-adjacent)
• Platform Integration: KEYPLUS Platform, Hotel PMS, BMS, Standalone

Tired of Low-End Drivers Compromising Your Lighting Ambience?

• Low-End Flickering & Stepped Transitions: Conventional LED drivers frequently exhibit harsh strobes and staggered steps when dimming down to low levels, destroying the ambiance of luxury interiors and causing eye strain.
• Thermal Risks & Inflexible Integration: Concealed ceiling drivers often lack dedicated thermal dissipation and comprehensive electrical protection, creating long-term maintenance headaches and dangerous fire hazards inside tight ceiling cavities.

The Solution: The Smart DMD2D2 Controller integrates dual-channel PWM algorithmic precision down to 1/1000 ultra-deep levels combined with an industrial perforated metal heat-sink enclosure, ensuring flicker-free transitions, silent operation, and long-term thermal reliability.

1/1000 Ultra-Deep Stepless Dimming & Tunable White

• Feature: Advanced PWM dual-channel algorithmic control delivers an ultra-wide dimming range from 1% to 100% and 1% to 1000% ultra-deep precision.
• Advantage: Eliminates visible flicker and abrupt jumps even at ultra-low light levels, enabling imperceptible transitions across color temperatures (CCT tuning).
• Benefit: Enables lighting designers and hotel operators to curate immersive lighting moods—from vibrant daylight task scenes to ultra-warm, whisper-soft nightscapes.

Soft-Start Gradual Brightness (Eye-Shield Architecture)

• Feature: Built-in soft-start circuitry prevents instantaneous peak current rushes when lights are switched on or off.
• Advantage: Gradually raises and lowers lumen output within milliseconds, protecting the human pupil from harsh glare shocks while dampening electrical stress.
• Benefit: Creates a luxurious guest welcome experience and significantly extends the operational service lifespan of premium LED fixtures.

Industrial-Grade Full Circuit Safeguards & Perforated Chassis

• Feature: Comprehensive automated shutdown mechanisms protecting against over-temperature, overload, and short circuits, housed in a ventilated metal casing.
• Advantage: Rapidly dissipates heat and cuts off abnormal surges instantly without catastrophic driver failure.
• Benefit: Provides total peace of mind for concealed ceiling installations, drastically reducing warranty claims and after-sales maintenance costs.

Model	Smart DMD2D2 Controller
Product Category	Room Control Devices / Lighting Controller
Rated Output Power	20W
Dimming Depth	1% – 100%, 1% – 1000% (Stepless ultra-deep)
Dimming Type	Dual-Color Temperature (Tunable White CCT)
Optical Protection	Soft-Start Gradual Brightness Function
Circuit Safeguards	Over-temperature, Overload, Short-circuit Protection
Input Voltage	AC 100V – 240V, 50/60Hz (Wide Voltage Design)
Communication Protocol	Zigbee 3.0 / Bluetooth BLE & Mesh
Control Interfaces	Voice Control, Mobile App, Knob Panel, Scene Automation
Chassis Material	High-grade Perforated Cooling Metal Alloy
Compliance & Quality	CE, RoHS Certified
Chassis Form Factor	Slim Linear Recessed / Embedded Metal Box
Product Dimensions (L×W×H)	135 mm × 42 mm × 25 mm
Installation Hole Spacing	125 mm (Dual side mounting tabs)
Net Weight	~145 g

Sales Unit	Single Unit (Boxed)
Standard Package Includes	1× Smart DMD2D2 Controller, 1× User Manual, 1× Screw Accessories Kit
Single Package Size	160 mm × 55 mm × 35 mm
Gross Weight (Single Unit)	0.18 kg
Master Carton Capacity	100 pcs / Carton
Master Carton Dimensions	380 mm × 340 mm × 290 mm
Master Carton Gross Weight	18.8 kg
Lead Time / Delivery	3–5 Days (Samples) / 15–25 Days (Batch OEM Order)
