Overview
Visualized Intelligence. One Panel, Infinite Scenes.

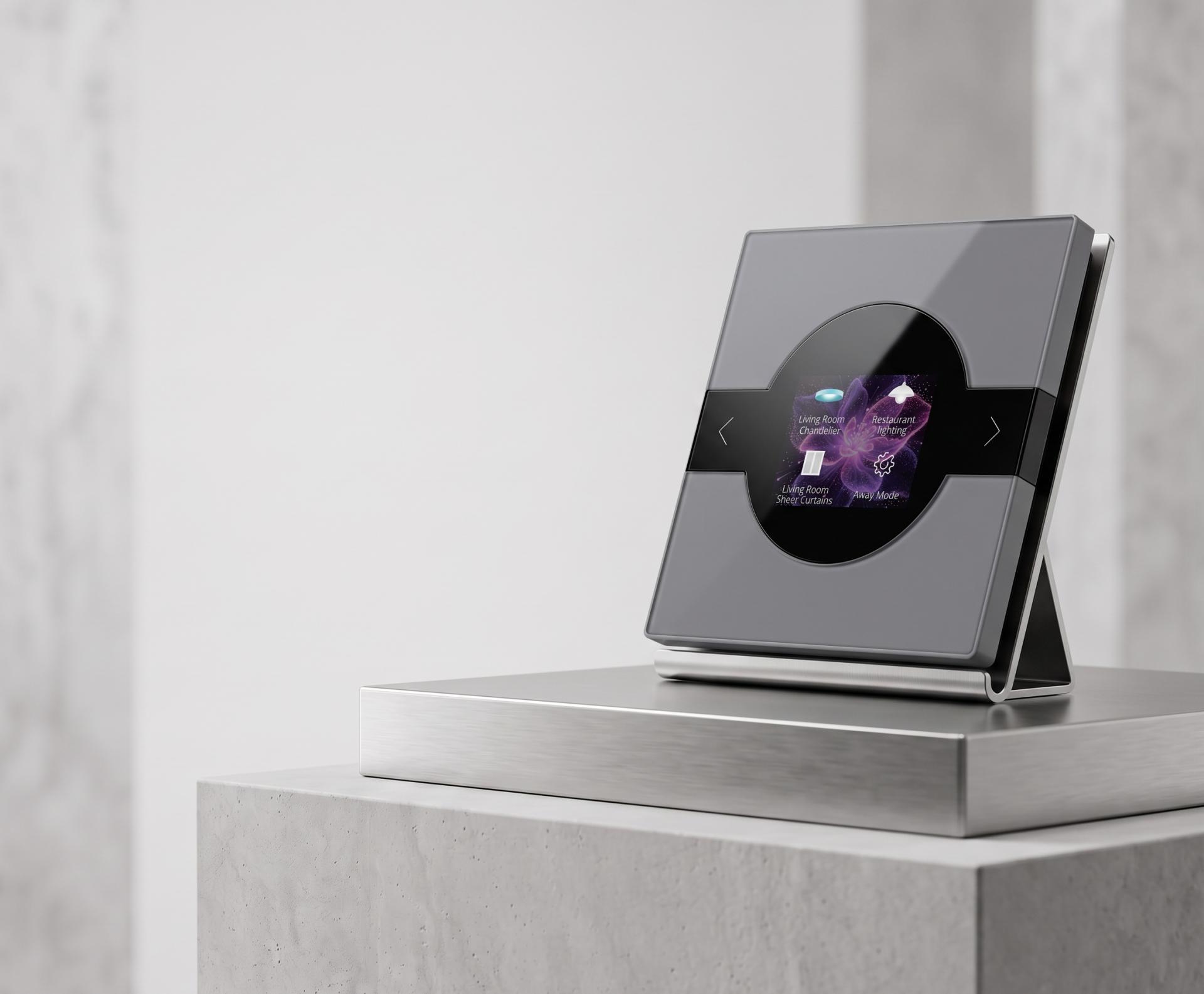

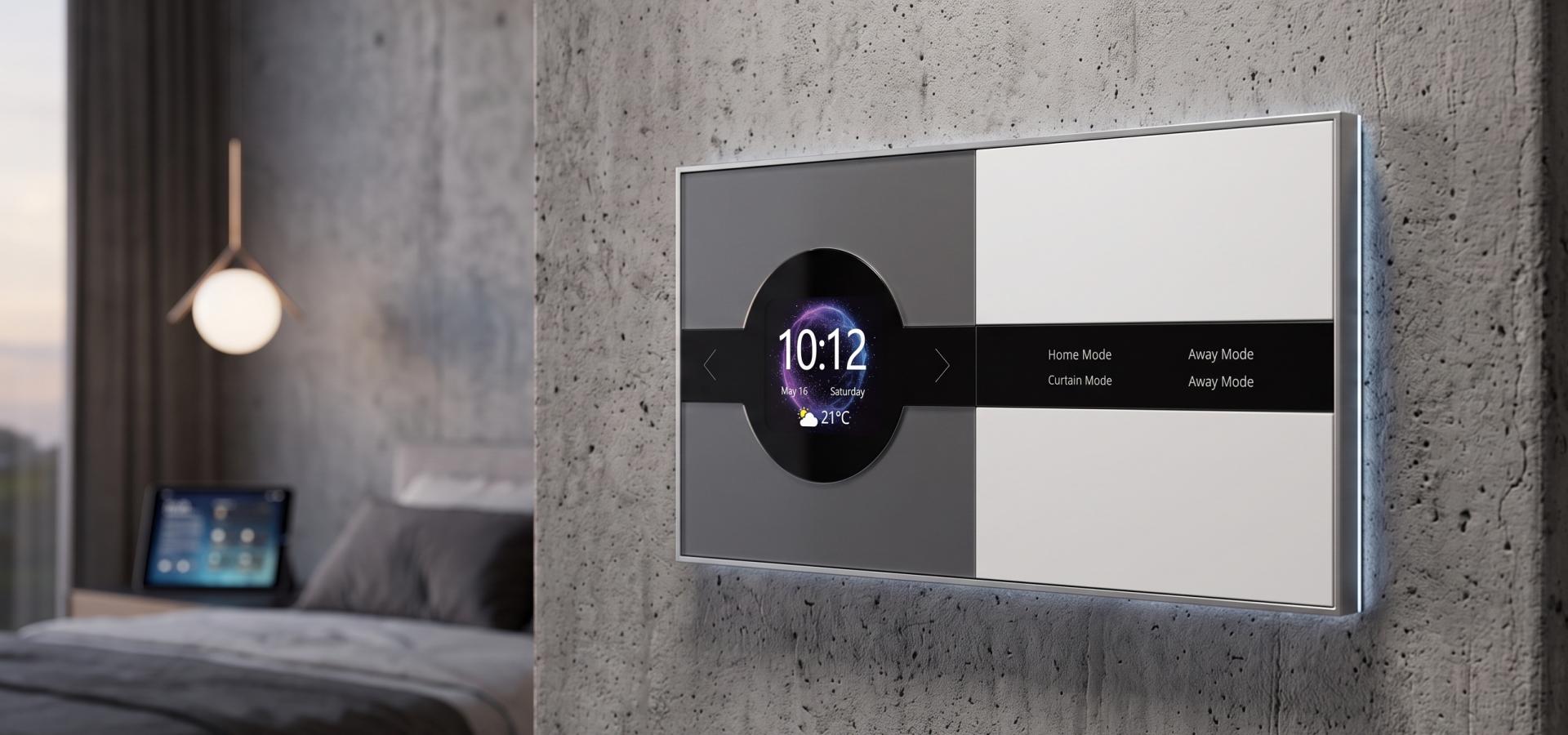

KEYPLUS Smart Display Scene Switch (JD3)
The KEYPLUS JD3 is a premium 86mm smart display scene switch featuring an integrated color LCD screen for live weather, time, and day readouts. Built with AG-coated anti-glare tempered glass and dual WiFi/Zigbee 2.4GHz protocols, it delivers customizable scene buttons, smooth lighting dimming/CCT tuning, and app/voice integration for high-end hospitality and modern residences.
Pain Points & Challenge
Wall Clutter and Blind Controls End Here.
Traditional wall switch layouts compromise premium spaces:
- Wall Acne & Design Chaos: Installing separate switches for lighting, motorized shades, and HVAC creates cluttered wall rows that degrade interior design.
- Guesswork Operation: Blank mechanical rockers leave occupants guessing which button operates which circuit.
- Static & Disconnected: Conventional switches cannot display status, environmental feedback, or adapt dynamically to personalized routines.
Key Capabilities & Benefits
Visualized Status with Real-Time Display
- Feature: Embedded circular color LCD screen showing real-time time, date, and live weather conditions.
- Advantage: Keeps crucial ambient and room status visible at all times, transforming an ordinary wall plate into an intuitive smart informational hub.
- Benefit: Complete awareness at a glance. Check the weather forecast before stepping out and identify active home modes instantly without unlocking your phone.
AG-Coated Tempered Glass & Architectural Finish
- Feature: Precision-crafted AG anti-glare coated tempered glass faceplate framed with high-grade aluminum alloy or PC accents.
- Advantage: Provides a silky, tactile touch that repels oil and fingerprints while effectively eliminating harsh ambient light reflections.
- Benefit: Enduring luxury aesthetics. Retains a pristine, spotless appearance in luxury hotels, corporate boardrooms, and executive master suites.
Dynamic Scene Orchestration & Precise Dimming
- Feature: Supports versatile multi-switching modes (Home, Away, Curtain, Dining) with custom-selectable labels/icons and smooth light tuning.
- Advantage: Single-tap activation triggers synchronized room transitions—dimming fixtures, lowering roller shades, and arming sensors simultaneously.
- Benefit: Effortless living tailored to your lifestyle. Shift room ambience for presentations, evening relaxation, or hotel hospitality with zero friction.
Technical Specifications
| Model Number | JD3 Smart Display Switch |
| Device Category | Scene Switch / Smart Touch Panel |
| Screen Technology | Integrated Color LCD (Live Weather, Time, Date Display) |
| Rated Load Power | 800W per gang |
| Operating Voltage | AC 100V–240V~ (50/60Hz) |
| Communication Protocol | WiFi / Zigbee 2.4GHz |
| Panel Surface | AG-Coated Tempered Glass + Aluminum Alloy / PC Frame |
| Dimensions | 86 × 86 mm (Standard 86-type box) |
| Interaction Modes | Capacitive Touch, Mobile App, Voice Assistant |
| Color Schemes | White, Grey, Gold |
| Relay Endurance | ≥ 100,000 Operations |
| Standby Power | ≤ 1.5W |
